Packaging & Delivery

Packaging Details:Delivery Detail:

Specifications

electric hoist truss-type portal crane
1.5% discount,
2.Focus on gantry crane,
3.Schneider or siemens,
4.ISO factory

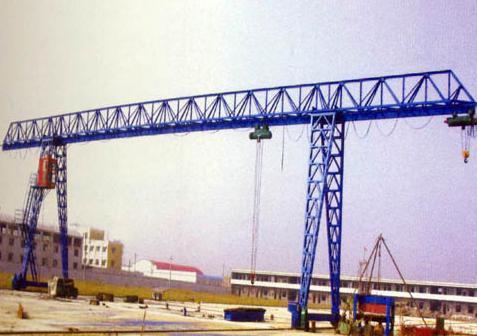

                              MH Type electric hoist truss-type portal Crane

Brief introduction&electric hoist truss-type portal crane:

1.Single girder frame gantry crane is widely used together with CD1,MD1 electric hoist,

2.It is a medium and light size crane which travels in track,

3.Its proper lifting weight is 2 to 16tons,and proper span is 5m-35m,

4.Its proper working temperaure is -20-40C degrees,

5.Its simple structure is convenient to maintain and install,

6.This product is a regular crane widely used in workshop,storage,port and hydroelectric power station and some other outdoor place,where it has a low frequency or few lifting times.

7.Gantry lift has two controlling methods namely ground controlling and cabin controlling,

Specifications&MH Type electric hoist truss-type gantry crane:

Mobel:MH

Rated loading capacity:1ton,2ton,3ton,5ton,10ton,16ton,20ton,

Span length:5m-30m,

Lifting height:3m-30m,

Working system:A3,

Power supply:380V,50HZ,3Ph,or on request,

Lifting mechanism:CD/MD electric hoist,

Two types of steel structure:Boxed type and trussed type,

Control mode:Push button or remote control or cabin,

Truss type advantage:1.Small windward side and wind resistance,2.Light dead weight,low cost,

3.Nice appearance.

Box type advantage:1.Compact structure,good rigidity,strong lifting capacity,indoor use available,2. Characteristic of slim body,save shipping cost.

Features&electric hoist truss-type portal crane:

1.Crane material:Q235,Q345B/Q345D,

2.Strong box type,no-welding joint strong box type,by machine hand,strong and beautiful,

3.Wheels are vacuum casting by ourselves,intermediate frequency quenching,

4.Wheels,wirerope,drum,gears,coupling,are manufactured by our CNC machines,

5.Electrical equipments:Siemens or schneider brand,

6.Control method:Cabin control,wireless remote control,or pendant control,you can choose two of them(According to your demand to design the gantry crane)

Safety features&electric hoist truss-type gantry crane:

1.Overload protection device,

2.Top quality long time bearing polyurethane materials buffer,

3.Crane travelling limit switch,

4.Voltage lower protection function,

5.Emergency stop system,

6.Lifting height limit device.

Packages:

Electric Hoist and electricals are packaged by high quality plywood crates,main beams are packaged by plastic woven cloth.

Delivery:

Within 25days after receiving your deposit.

Port:Qingdao/Tianjin

Our Service:

Before order:One-to-one service,our engineer with more than 20years experiences,give you the best crane solution!

After-sale service:

1)One year warranty for whole machines,

2)Providing free quick-wear part,

3)Low charge for continue maintenance when warranty is expired.

4)Exclusive engineer support at any time.

Installation service:

We have professional installation teams and rich installation experience,if you need,we can offer you oversea installation service
