Specifications

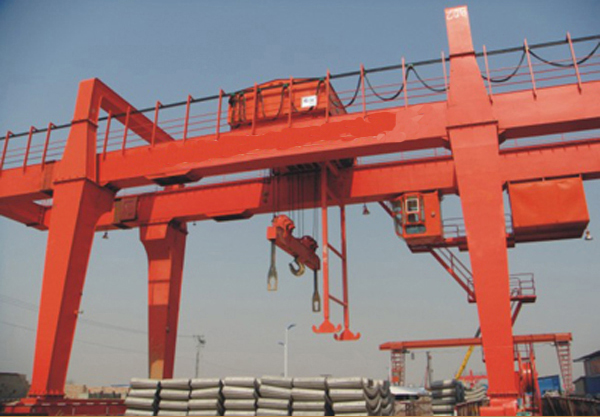

U-leg Double Girder Portal Crane with Hook
1.capacity: 10-50/10t
2.span: 18m~37.5m
3.lifting height: 6~40m
4.with CE an T

U-leg Double Girder Portal Crane with Hook:

Lifting Capacity : 1-20t

Span: 2.5m to 37.5m

Lift height: 3m to 40 m

Working duty:  A4(M4).

CE, TUV, GOST certificate, Top quality

U-leg Double Girder Portal Crane with Hook:

Motors:The motors are used specially crane duty suitable for frequent starting, reversing & braking in accordance with China National Standards. Motors are totally enclosed in dust proof construction , Sq. cage motors with integrated safety brakes, protection for hoisting, CT & LT motions.

Brakes: dual-disc brakes with features like automatic braking on power failure (FAIL SAFE).

Gear Box: The entire gear boxes are made of accurate hob cut helical / spur gears & pinions having hardness 250 to 350 BHN made from carbon alloy steel. All gears & pinions running on antifriction type ball / roller bearings in totally enclosed oil bath giving constant splash lubrication. The helical / Spur gear designed for adequate strength and optimum wear resistance for smooth operation & long life.

Electrical Panel: Modular design, ease to install and maintain, reliable operation, fuse less circuitry, ducted wiring and compact terminals. Motor overload protection to prevent overloading.

Limit Switch:Safety limit switches for stoppers will be provided to prevent over traveling in all motions.

Painting:Two coats of primer before assembly & two coats of synthetic enamel after testing.

Other features:

· Wireless Radio Remote control

· Shrouded DSL system for power feeding

· Flameproof

· Cabin Operated

we have produced several thousands of single girder cranes up to 20t every year, they are successfully operating at many clients. The satisfaction of our clients has helped us establish a strong reputation as the preferred supplier. We manufacture range of products for different applications in the steel industry. We customise and recommend the perfect solution to our clients.

U-leg Double Girder Portal Crane with Hook:

· 1. Reasonable structure, Top safety

· 2. Favorable performance, accurate and smooth lifting.

· 3. Safe and reliable traveling, pricise control and positioning.

· 4. all round protection, easy operation,

· 5. Convenient maintenance, high exchangeability for parts and components

· 6. Main girder: box-shaped girder.
